LOW INTENSITY:

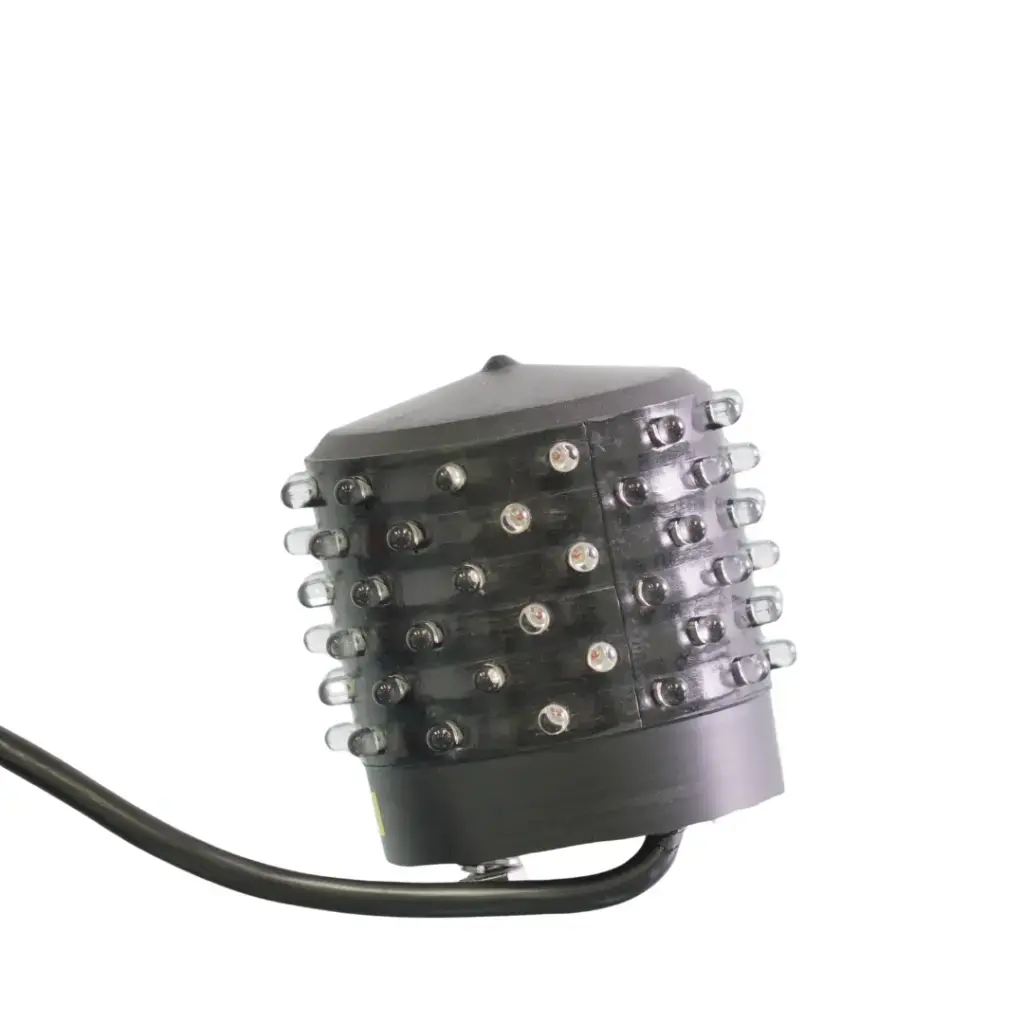

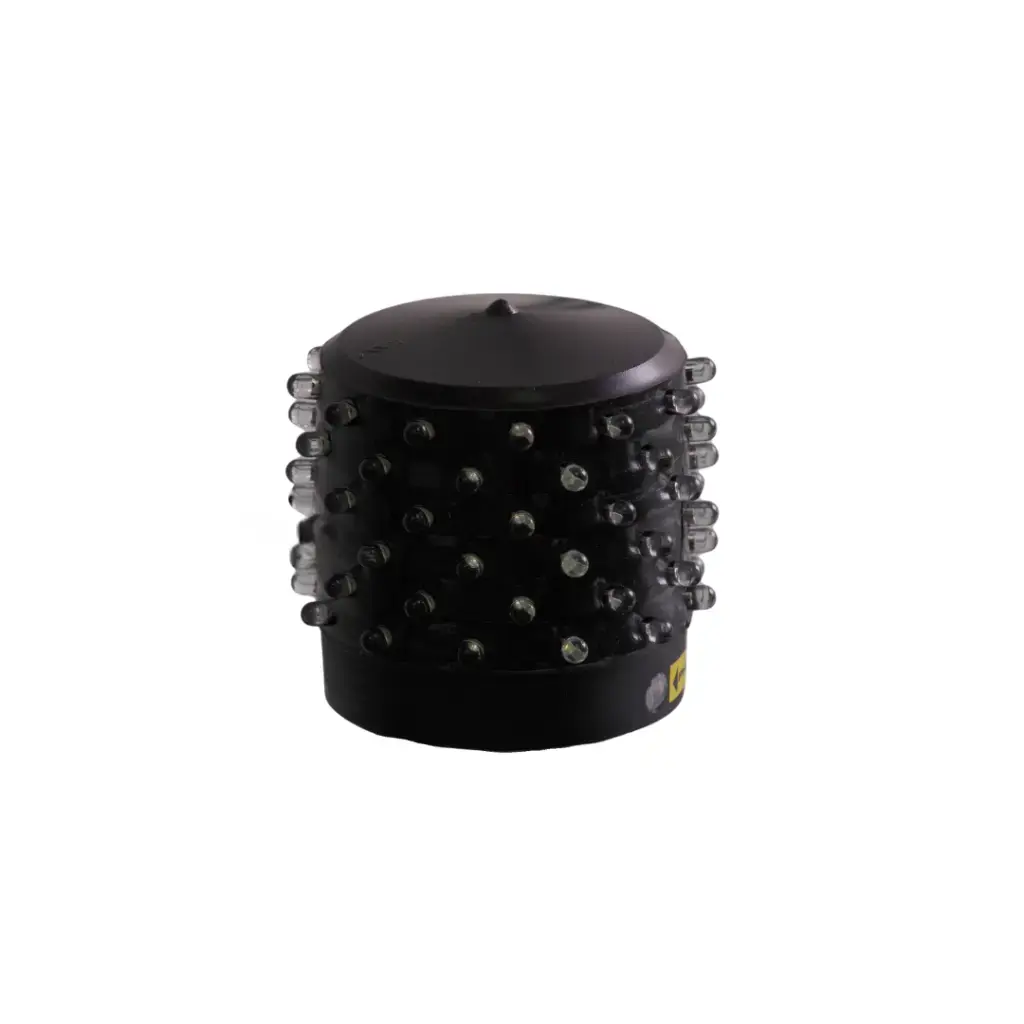

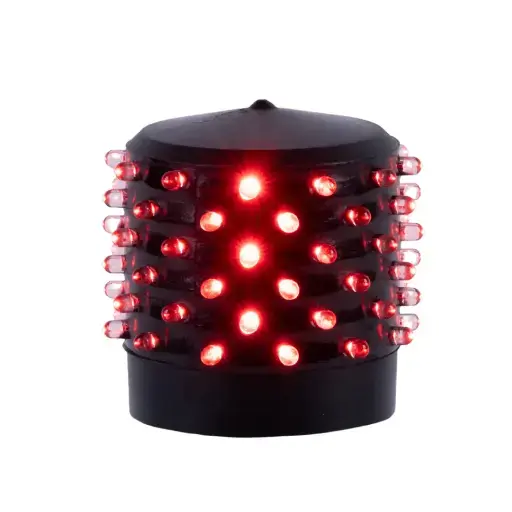

AOL: Li-3272

Introducing our cutting-edge Low Intensity Type B Aviation Obstruction Light – the ideal choice for aviation safety. Utilizing high-brightness LED technology, it ensures optimal visibility and energy-efficiency. This versatile light suits structures under 45 meters above ground level.

Trust in the reliability and visibility of our advanced Low Intensity Type A model.

Download Brochure PDF

Everything you should know about our AOL: Li-3272

Engineered for Visibility. Built for Compliance. Proven in Real-World Applications.

Features

32 cd Brightness

IP67 Rating

Surge Protection

Power
Savings

Solid State Tech

Photo Sensor

Super Lite

Compliance

ICAO

CAAM

SIRIM

Application

Building

Chimney

Wind Turbines

Bridges

Telecom Towers

Specifications

Engineered to Meet Standards. Designed for Reliable Performance

Compliance and Certifications

ICAO Annex 14.
CAAM ASD 404 & CAD 14

**Dimension (LWH) & Weight**

83x83x80mm
0.5kg (Single Model)
1.0kg (Twin Model)
0.4kg (Bracket)
9.0kg (WP Control Panel 0+1)

Performed Test

Rain Test - 130mm/h
Wind Test - 150km/h
Humidity Test - 95% RH (+55˚C for 72h)
Operational Test - 1000h
Leakage Current Test - < 10µA

Characteristics

Light Type - Low Intensity Type B
Light Source - 72 LED Cluster
Lifespan - ≥ 100,000h
Effective Intensity - 32 cd
Light Color - Red
Horizontal Beam - 360˚

Vertical Beam - >10˚

Operation

Mode: Steady Burning (Fixed)
Temperature: -10˚C ~ +80˚C
IP Rate: IP67

Material

Body - UV Resist Epoxy
Mounting - Stainless Steel

Ready to elevate aviation safety with reliable lighting solutions?

Let's turn your vision into reality. Contact us today to request for quotation or connect with our company.

INNOVATIVE LED SOLUTIONS

BETTER

BY DESIGN

Built to last, we engineer our lights with many special features to match the uncompromising environment that they are used in. One of which is its waterproof feature to ensure that it is able to withstand wet and humid conditions.
