SOLAR TYPE:

AOL: LS-3272

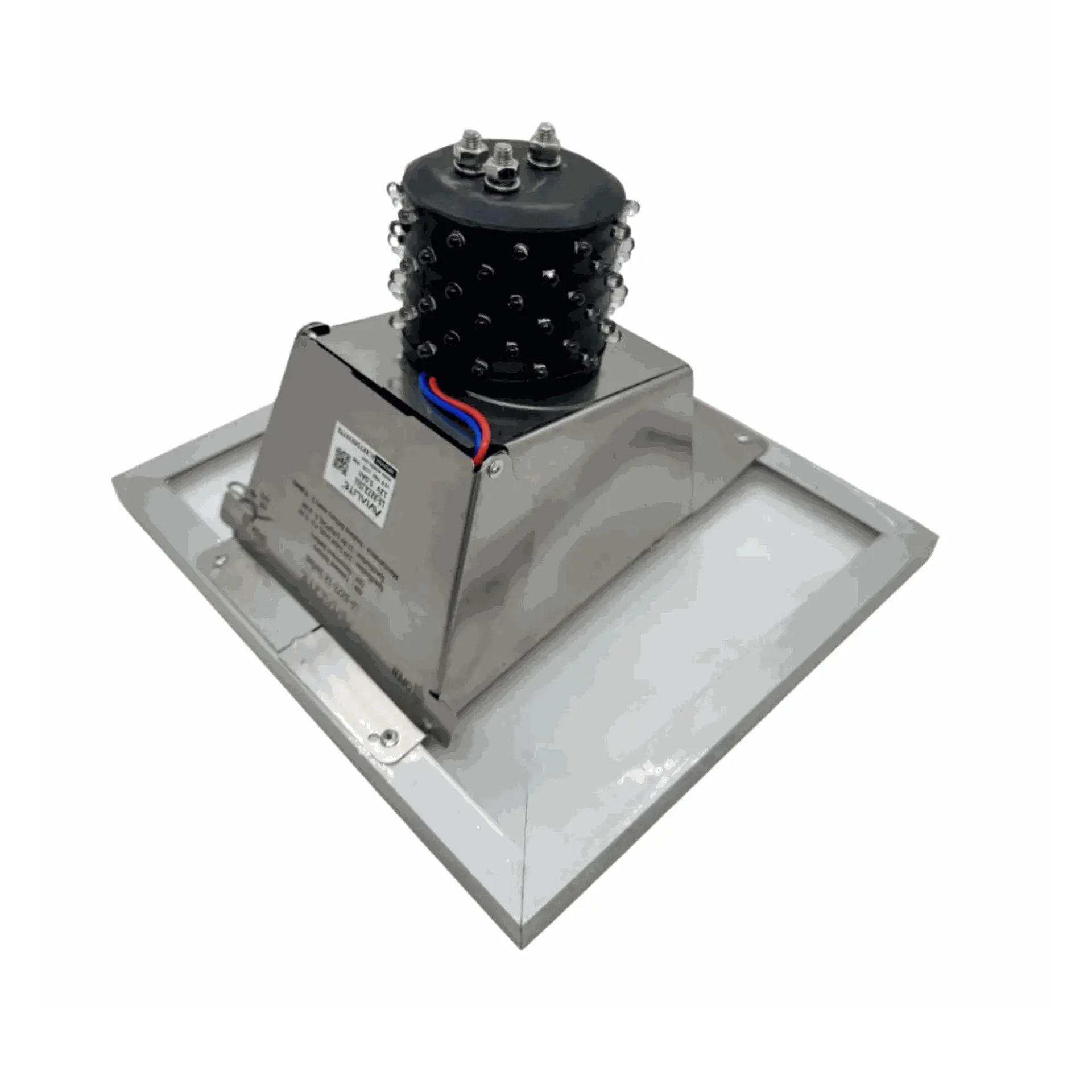

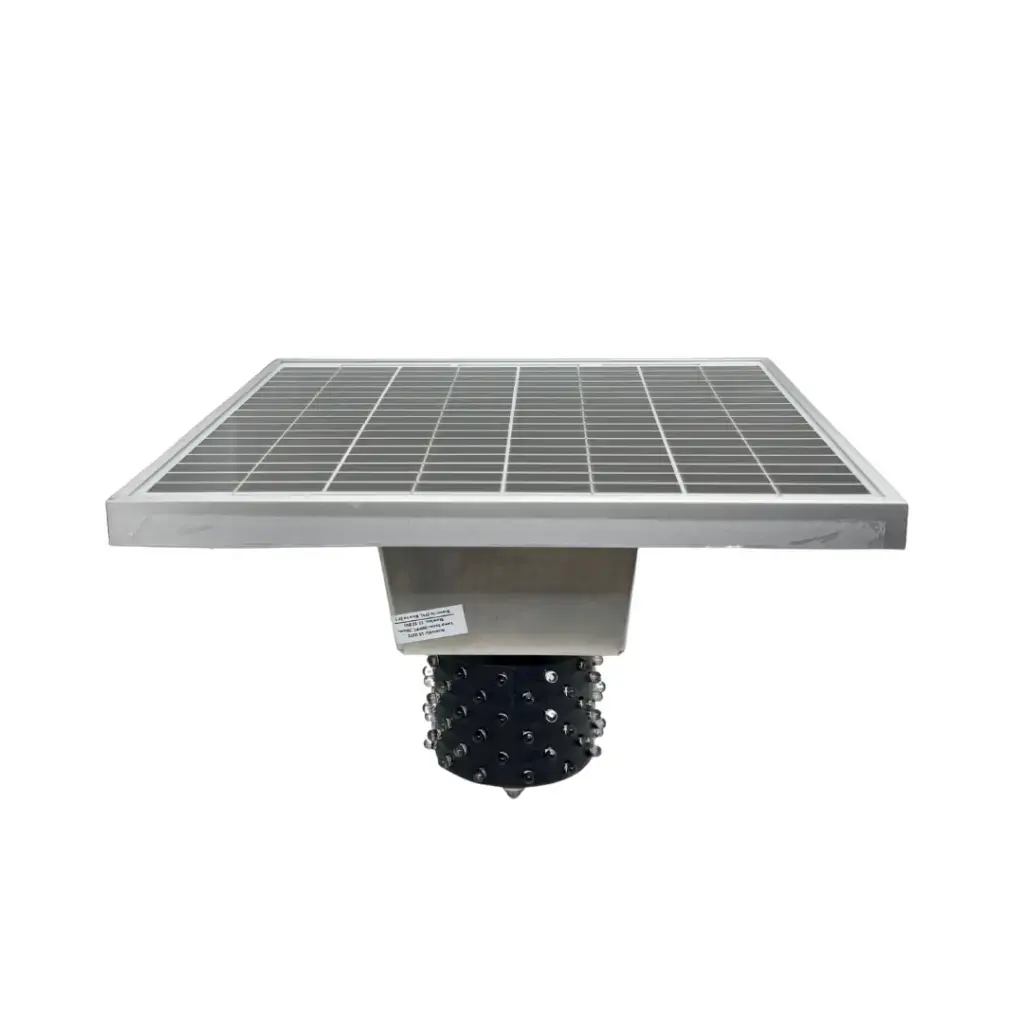

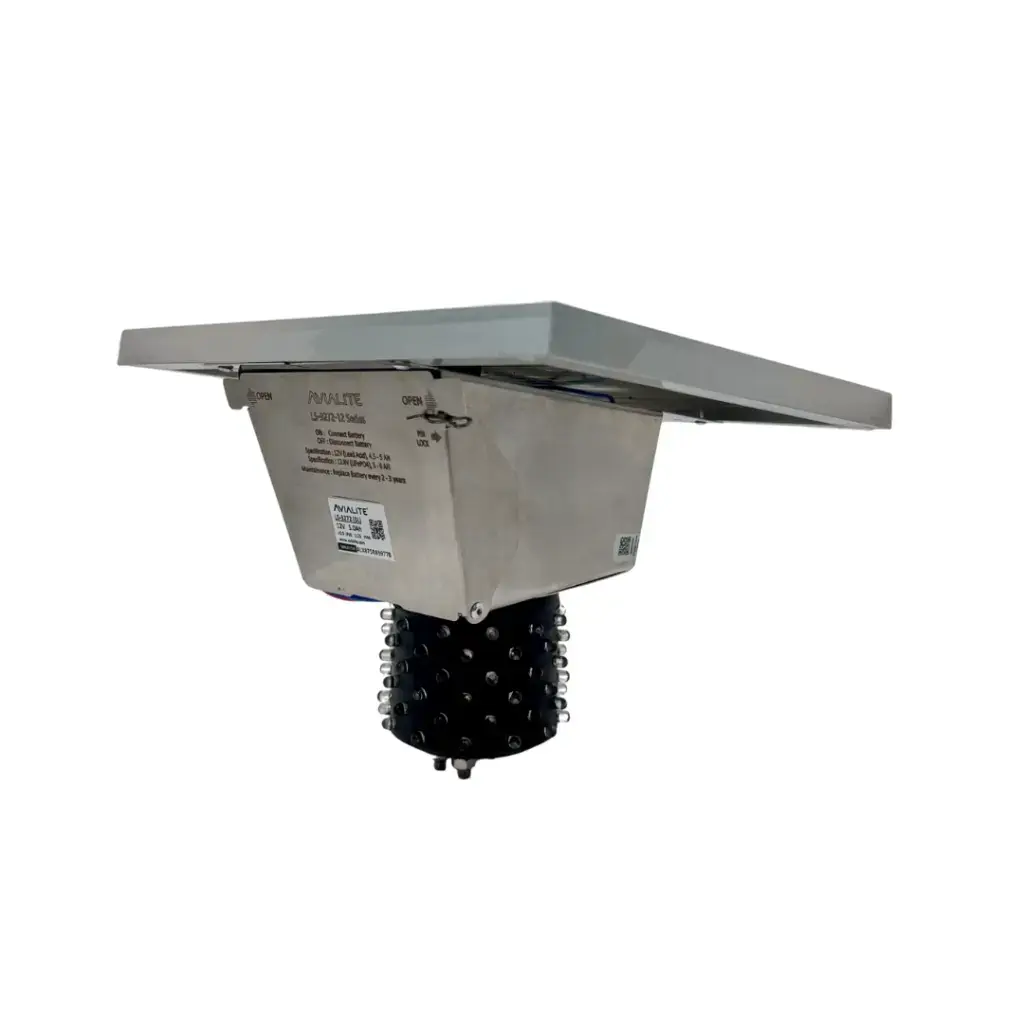

Introducing our Solar Powered Low Intensity Type B Aviation Obstruction Light – the ultimate solution with no power supply required. Fully compliant with ICAO and CAAM standards, this light features with single solar panel and an integrated MPPT module for fast charging.

Trust in the reliability and visibility of our advanced Low Intensity Type B model.

Download Brochure PDF

Everything you should know about our AOL: LS-3272

Engineered for Visibility. Built for Compliance. Proven in Real-World Applications.

Features

35Cd Brightness

IP67 Rating

Surge Protection

Power
Savings

Solid State Tech

Photo Sensor

Super Lite

Battery Powered

Solar Energy

Compliance

ICAO

CAAM

SIRIM

Application

Building

Chimney

Wind Turbines

Bridges

Telecom Towers

Specifications

Engineered to Meet Standards. Designed for Reliable Performance

Compliance and Certifications

ICAO Annex 14.
CAAM ASD 404 & CAD 14
FAA L-810

**Dimension (LWH) & Weight**

70x70x61mm
0.3KG (Single Model)
0.7KG (Twin Model)
0.4KG (Bracket)
9.0KG (WP Control Panel 0 + 1)

Performed Test

Rain Test - 130mm/h
Wind Test - 150km/h
Humidity Test - 95% RH (+55˚C for 72h)
Operational Test - 1000h
Leakage Current Test - < 10µA

Characteristics

Light Type - Low Intensity Type B
Light Source - 72 LED Cluster
Lifespan - ≥ 100,000h
Effective Intensity - 35 Cd
Light Color - Red
Horizontal Beam - 360˚

Vertical Beam - >10˚

Operation

Mode: Steady Burning (Fixed)
Temperature: -10˚C ~ +60˚C
IP Rate: IP67 (Lamp)

Material

Body - UV Resist Epoxy
Battery Compartment - Stainless Steel
