MEDIUM INTENSITY:

AOL: Mi-20-2KP

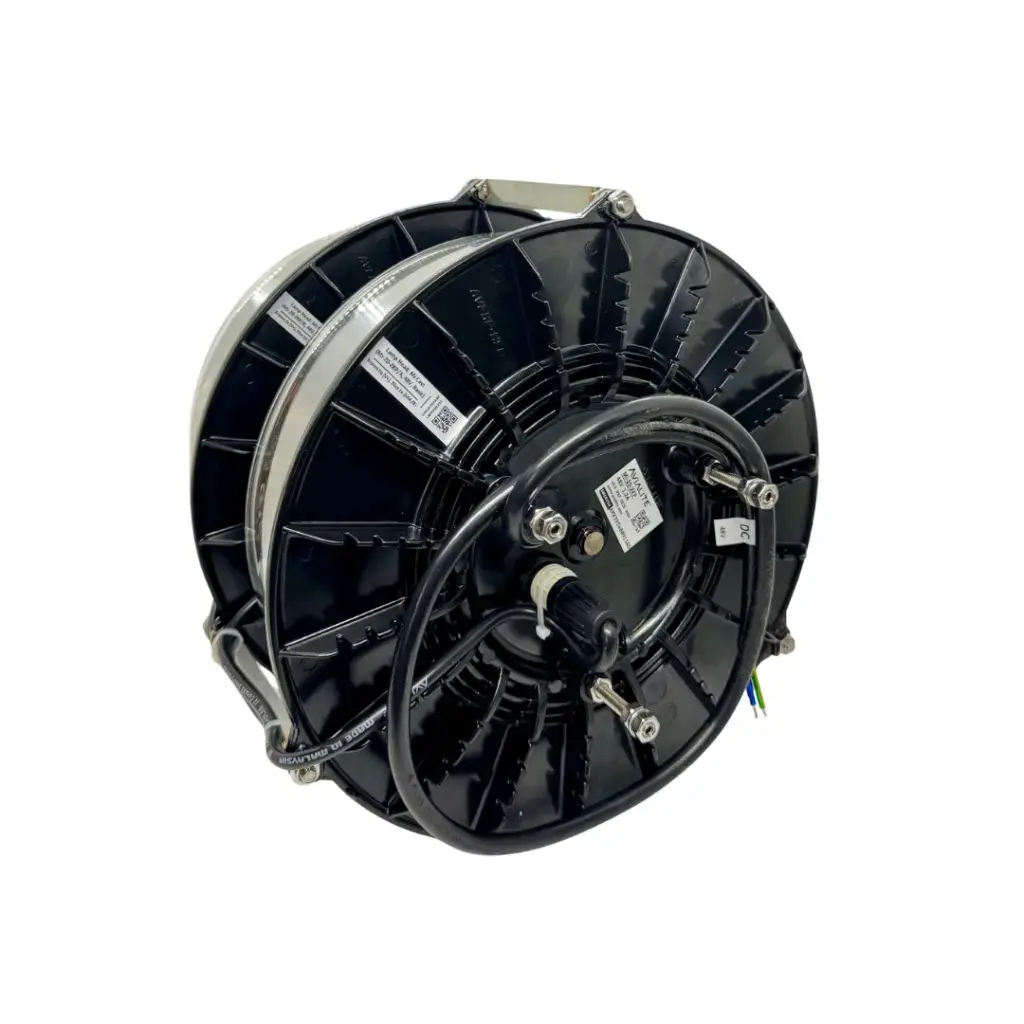

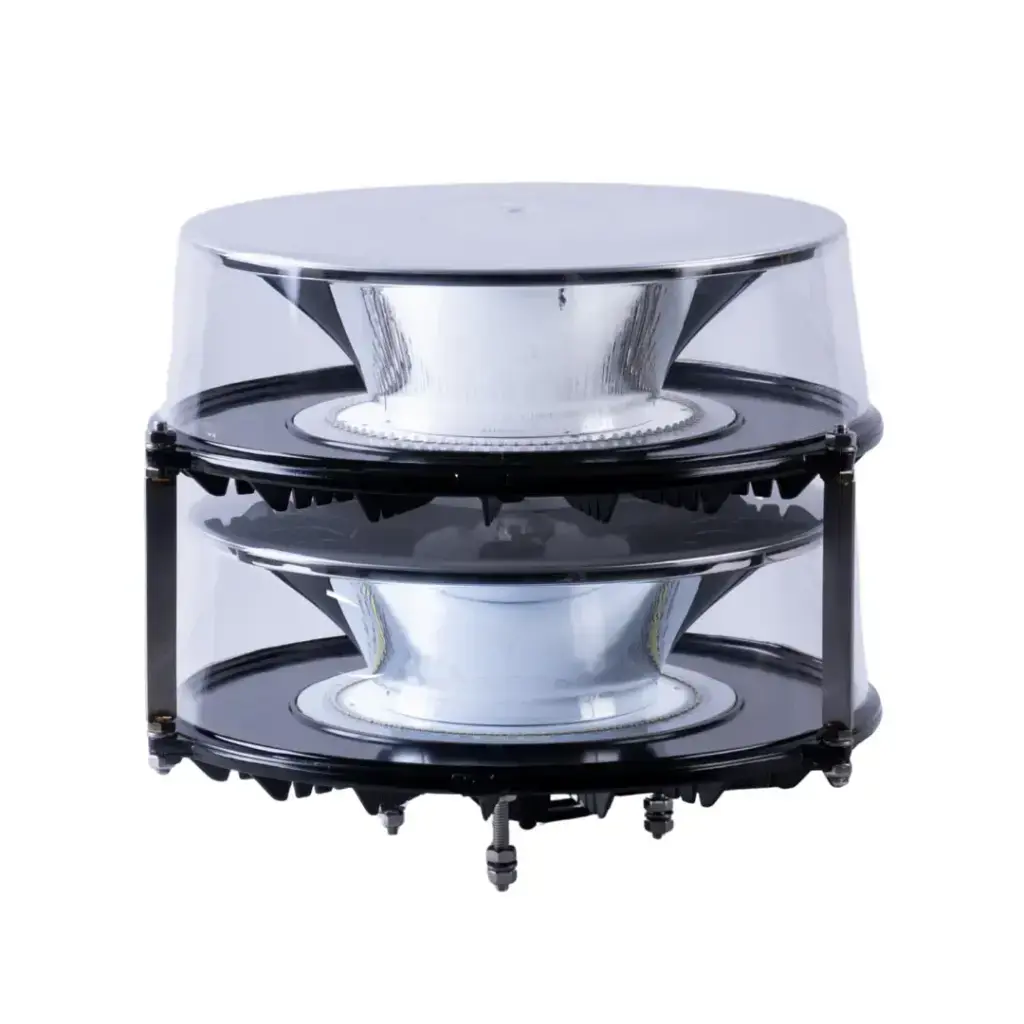

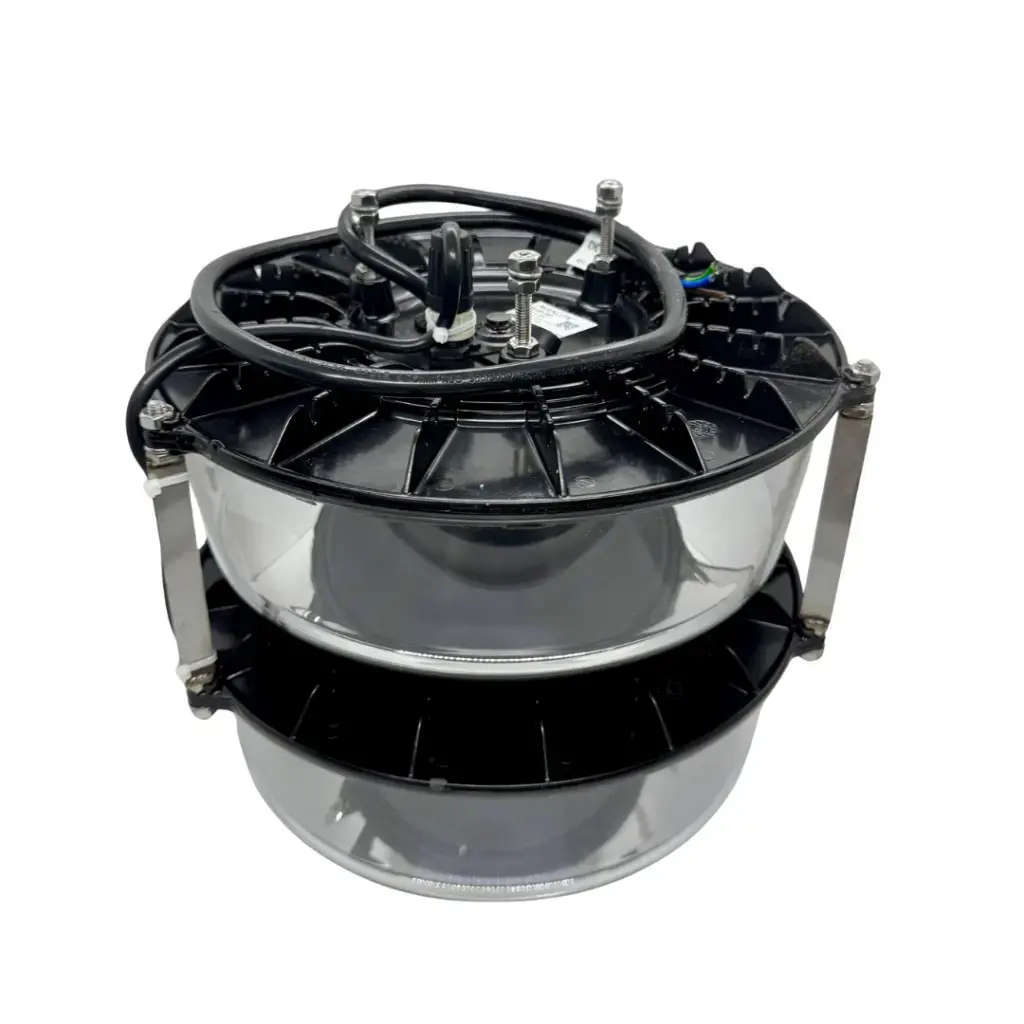

Introducing our Medium Intensity Type AB Aviation Obstruction Light – featuring continuous 24-hour operation with white and red color flashing. Equipped with high brightness SMD LED technology and a PMMA automotive-grade lens, it ensures superior light output. Compliant with ICAO and CAAM standards, this light suits structures above 105 meters.

Trust in the reliability and visibility of our advanced Medium Intensity Type AB model.

Download Brochure PDF

Everything you should know about our AOL: Mi-20-2KP

Engineered for Visibility. Built for Compliance. Proven in Real-World Applications.

Features

20,000 cd Brightness

IP67 Rating

Surge Protection

Power
Savings

Solid State Tech

Photo Sensor

Super Lite

Compliance

ICAO

CAAM

SIRIM

Application

Building

Chimney

Wind Turbines

Bridges

Telecom Towers

Specifications

Engineered to Meet Standards. Designed for Reliable Performance

Compliance and Certifications

ICAO Annex 14
CAAM ASD 404 & CAD 14

**Dimension (LWH) & Weight**

276x276x225mm
3.5kg (Lamp Head)
1.2kg (Twin Model)
13.5kg (WP Control Panel 1+0)

Performed Test

Rain Test - 130mm/h
Wind Test - 150km/h
Humidity Test - 95% RH (+55˚C for 72h)
Operational Test - 1000h
Leakage Current Test - < 10µA

Characteristics

Light Type - Medium Intensity Type AB
Light Source - 168 (White), 80 (Red) SMD LED
Lifespan - ≥ 100,000h
Effective Intensity - 20,000 cd (Day) / 2,000 cd (Night)
Light Color - White (Day) / Red (Night)
Horizontal Beam - 360˚

Vertical Beam - >3˚

Operation

Mode: Flashing
Flashing Rate: 20 - 30 fpm
Temperature: -20˚C ~ +80˚C
IP Rate: IP67

Material

Cover - Automotive Grade PMMA
Body - ED Coated Die Cast Aluminum

Ready to elevate aviation safety with reliable lighting solutions?

Let's turn your vision into reality. Contact us today to request for quotation or connect with our company.
