MEDIUM INTENSITY:

AOL: Mi-20KP

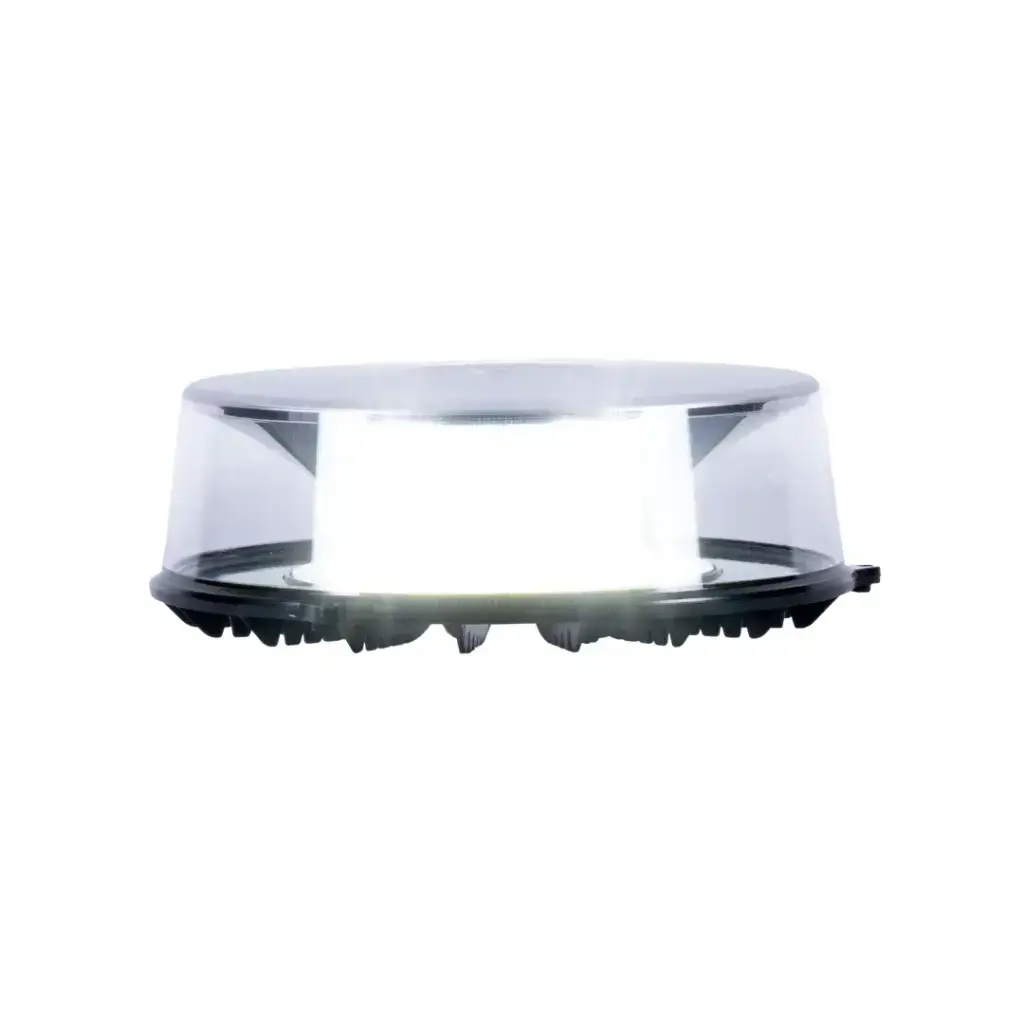

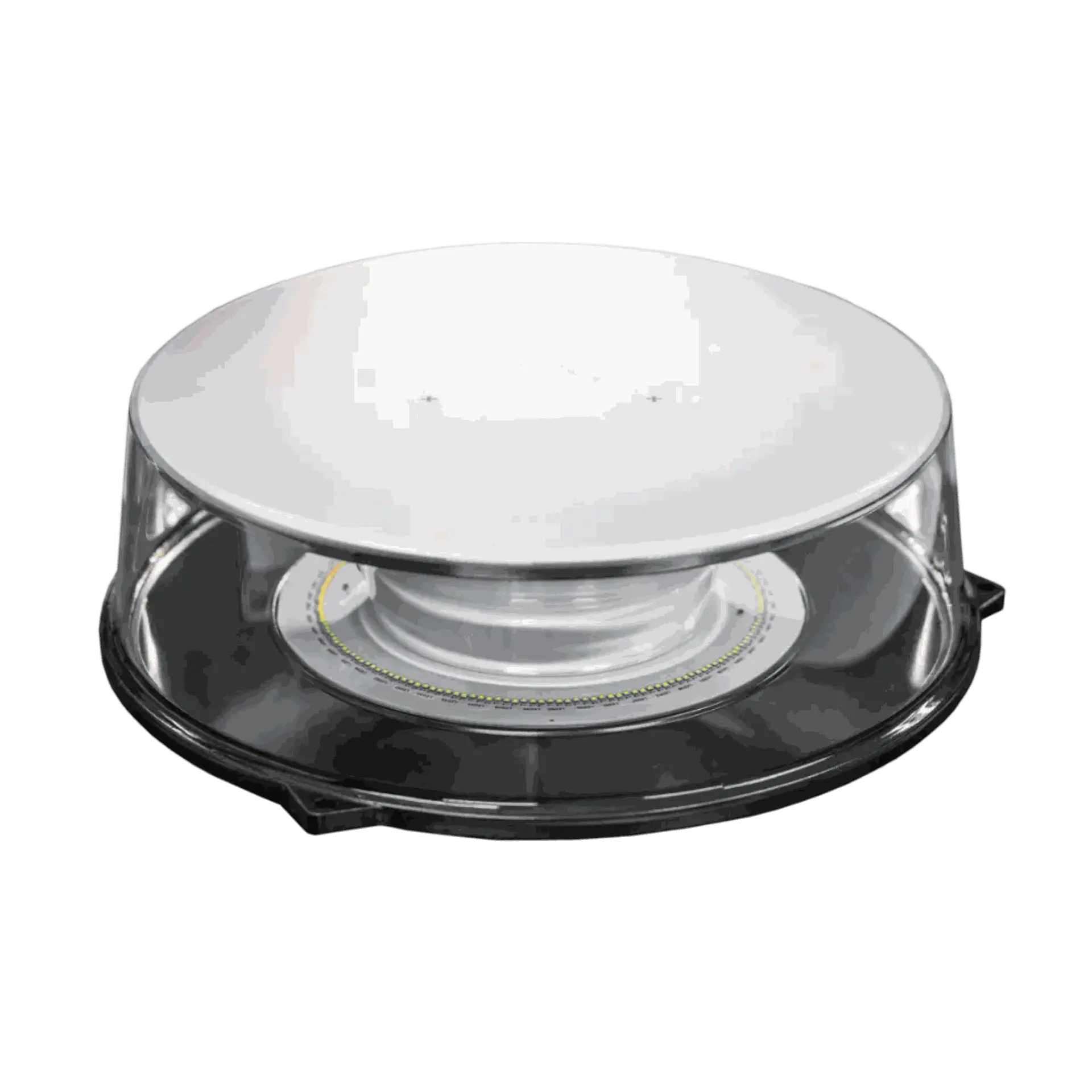

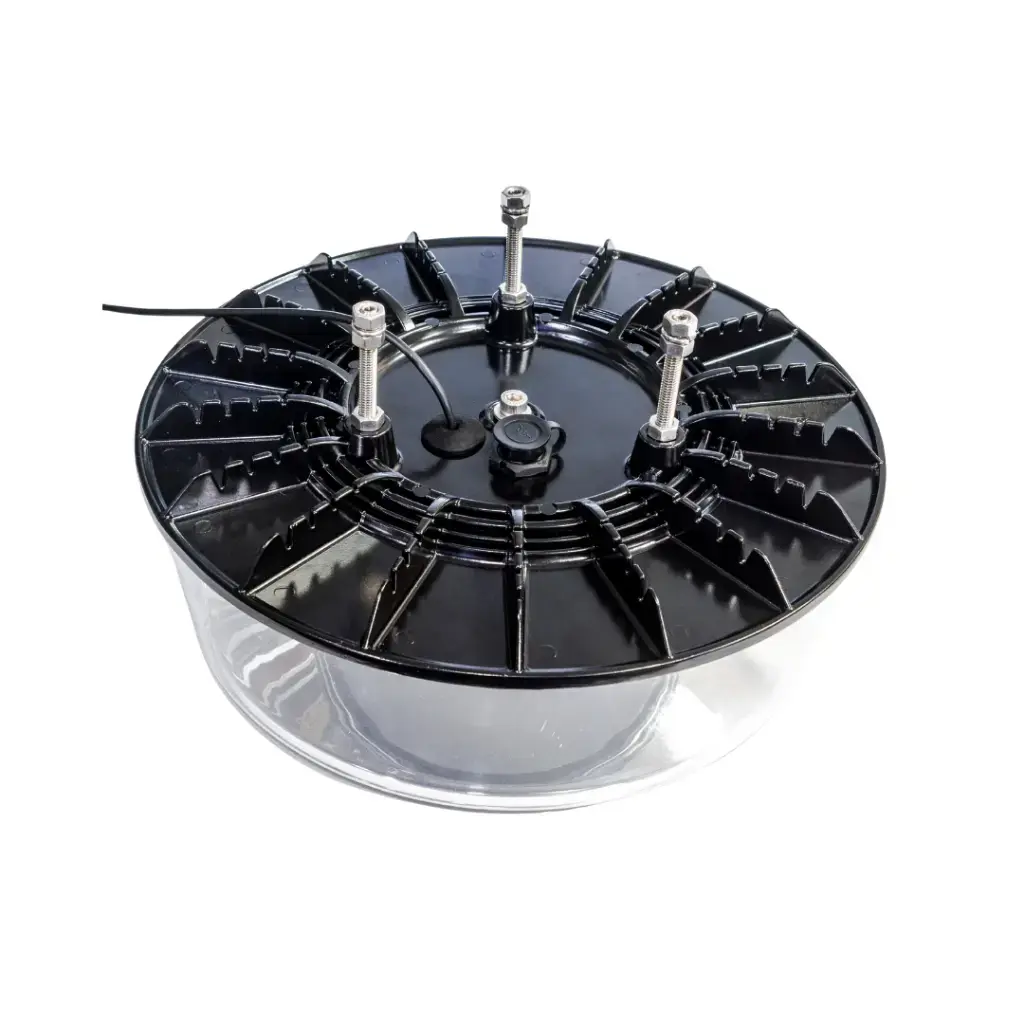

Introducing our Medium Intensity Type A Aviation Obstruction Light – featuring white color flashing for continuous 24-hour operation. Equipped with high brightness SMD LED technology and a PMMA automotive-grade lens, it ensures superior light output and suitable for structures above 105 meters.

Elevate aviation safety with our reliable and efficient Medium Intensity Type A model, providing essential warning signals for tall structures day and night.

Download Brochure PDF

Everything you should know about our AOL: Mi-20KP

Engineered for Visibility. Built for Compliance. Proven in Real-World Applications.

Features

20,000 cd Brightness

IP67 Rating

Surge Protection

Power
Savings

Solid State Tech

Photo Sensor

Super Lite

Compliance

ICAO

CAAM

SIRIM

Application

Building

Chimney

Wind Turbines

Bridges

Telecom Towers

Specifications

Engineered to Meet Standards. Designed for Reliable Performance

Compliance and Certifications

ICAO Annex 14
CAAM ASD 404 & CAD 14
FAA L-864

**Dimension (LWH) & Weight**

266x266x98mm
1.8kg (Lamp Head)
1.2kg (Bracket)
13.5kg (WP Control Panel 1+1)

Performed Test

Rain Test - 130mm/h
Wind Test - 150km/h
Humidity Test - 95% RH (+55˚C for 72h)
Operational Test - 1000h
Leakage Current Test - < 10µA

Characteristics

Light Type - Medium Intensity Type A
Light Source - 168 SMD LED
Lifespan - ≥ 100,000h
Effective Intensity - 20,000 cd (Day) / 2,000 cd (Night)
Light Color - White (Day) / White (Night)
Horizontal Beam - 360˚

Vertical Beam - >3˚

Operation

Mode: Flashing
Flashing Rate: 20 - 30 fpm
Temperature: -20˚C ~ +80˚C
IP Rate: IP67

Material

Cover - Automotive Grade PMMA
Body - ED Coated Die Cast Aluminum

Ready to elevate aviation safety with reliable lighting solutions?

Let's turn your vision into reality. Contact us today to request for quotation or connect with our company.

INNOVATIVE LED SOLUTIONS

BETTER

BY DESIGN

Built to last, we engineer our lights with many special features to match the uncompromising environment that they are used in. One of which is its waterproof feature to ensure that it is able to withstand wet and humid conditions.
