SOLAR TYPE:

AOL: MS-20KP

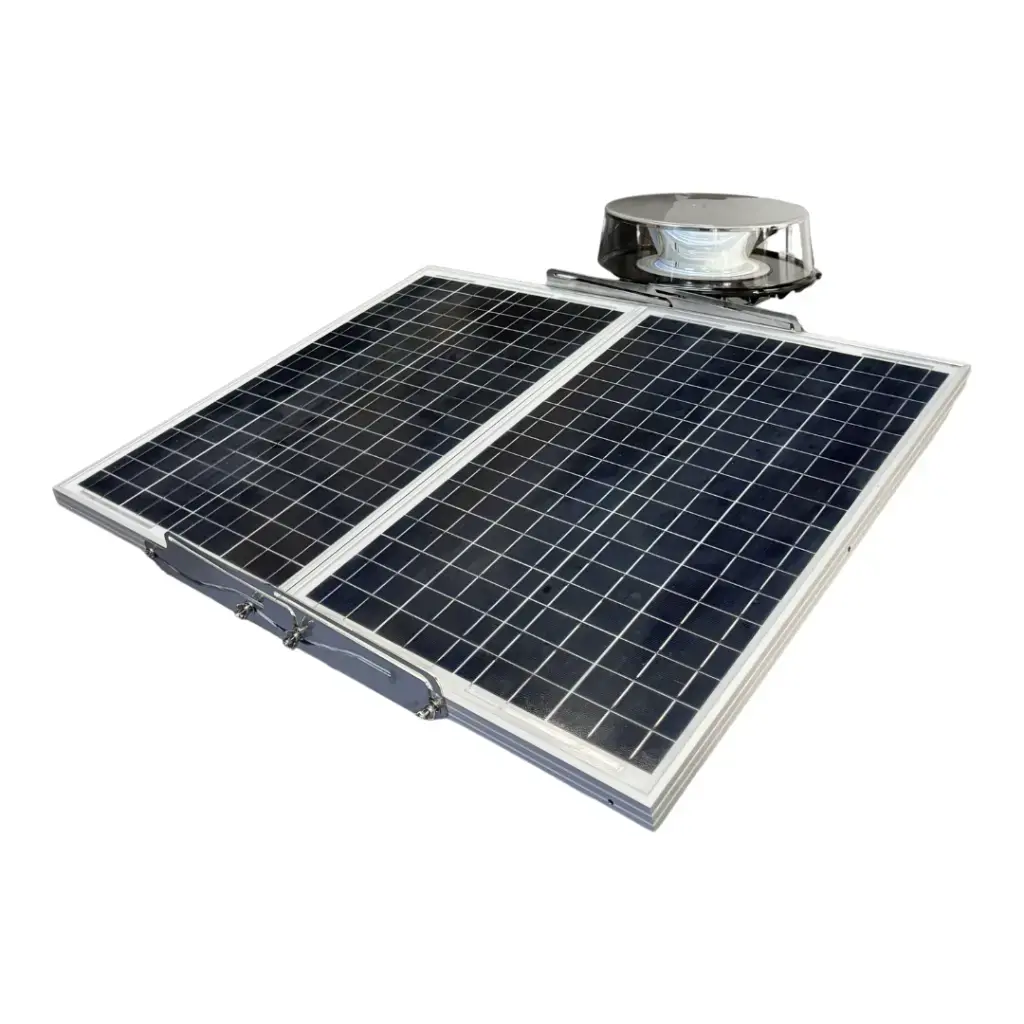

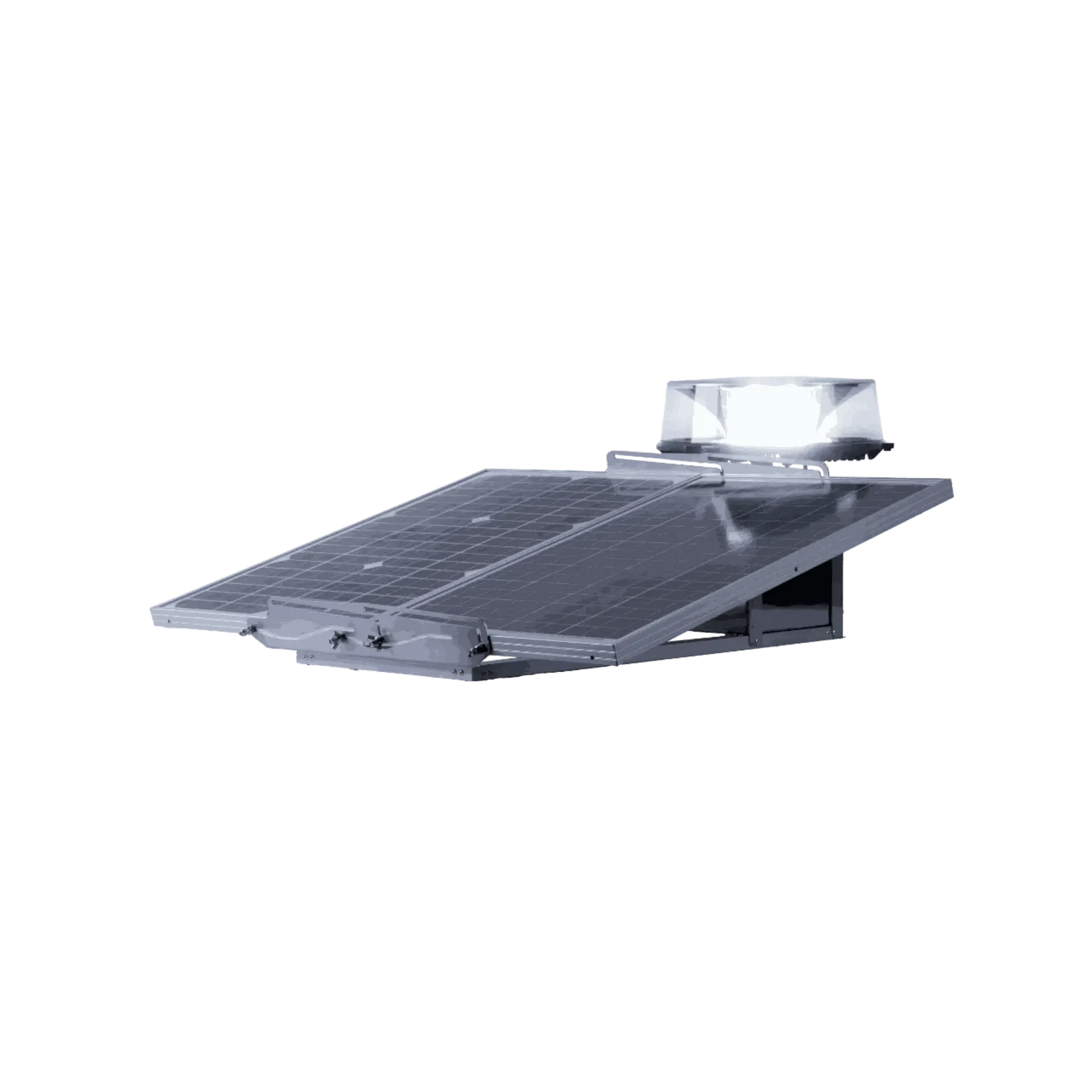

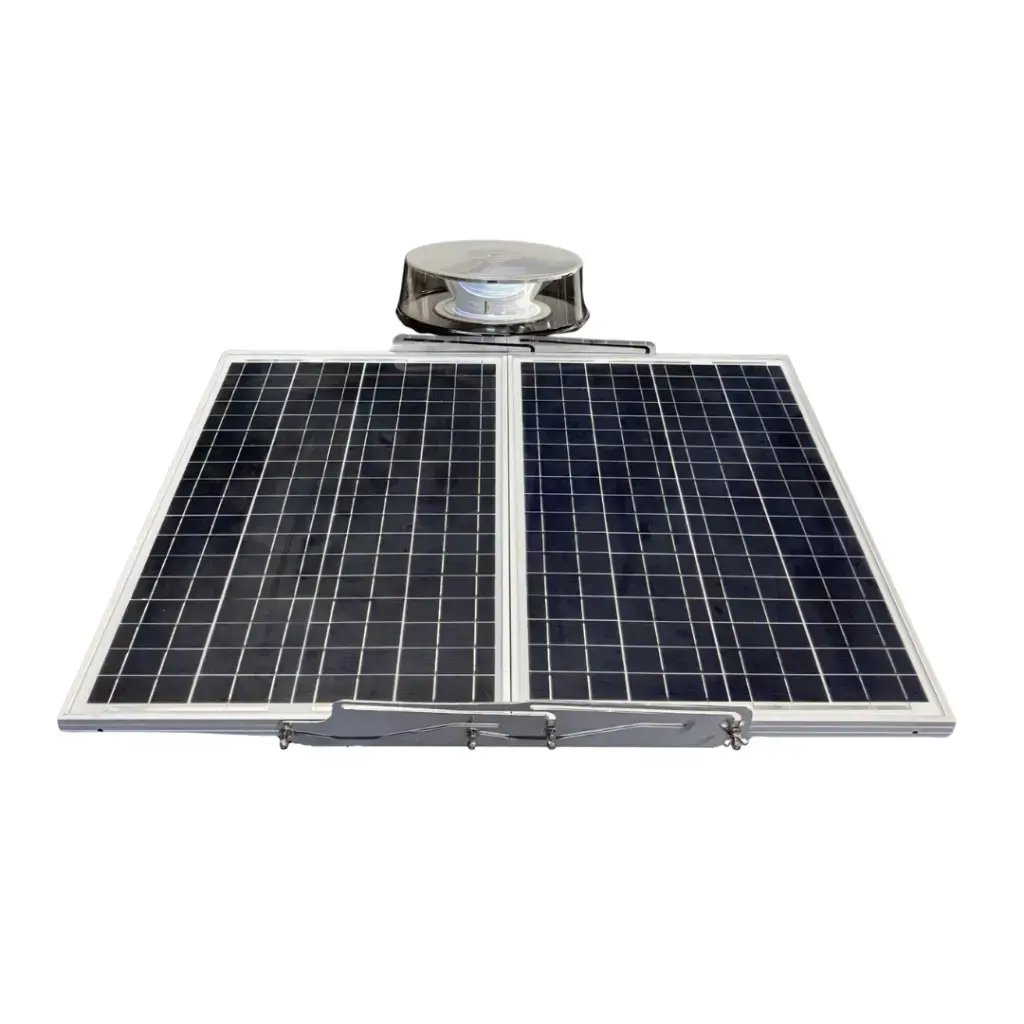

Introducing our Solar Powered Medium Intensity Type A Aviation Obstruction Light – perfect for power transmission lines. Its innovative compact design and extended solar panel ensure 24-hour white color flashing visibility.

Compliant with ICAO and CAAM standards, ideal for structures above 105 meters.

Trust our advanced Solar Powered Medium Intensity Type A model for reliable aviation safety around the clock

Download Brochure PDF

Everything you should know about our AOL: MS-20KP

Engineered for Visibility. Built for Compliance. Proven in Real-World Applications.

Features

10Cd Brightness

IP67 Rating

Surge Protection

Power
Savings

Battery Powered

Photo Sensor

Solar Energy

20 - 60 Flashing

Compact PV Design

Compliance

ICAO

CAAM

SIRIM

Application

Building

Telecom Towers

Transmission Line

Specifications

Engineered to Meet Standards. Designed for Reliable Performance

Compliance and Certifications

ICAO Annex 14.
CAAM ASD 404 & CAD 14
FAA L-865

**Dimension (LWH) & Weight**

266x266x98mm (Lamp Head)
721x690x207mm (Casing Assembly)
1.8kg (Lamp Head)
7.6kg (Solar Panel)
10.0kg (48V Battery Set)

Performed Test

Rain Test - 130mm/h
Wind Test - 150km/h
Humidity Test - 95% RH (+55˚C for 72h)
Operational Test - 1000h
Leakage Current Test - < 10µA
Lightning Surge Test - 6kV 1.2/50μs, 3kA 8/20μs

Characteristics

Light Type - Low Intensity Type A
Light Source - 168 SMD LED
Lifespan - ≥ 100,000h
Effective Intensity - 20,000 Cd (Day) / 2,000 Cd (Night)
Light Color - White (Day) / White (Night)
Horizontal Beam - 360˚

Vertical Beam - >3˚

Operation

Mode - Flashing
Flashing Rate - 20 - 30 fpm
Temperature: -20˚C ~ +60˚C
IP Rate - IP67
Rating - 30W x 2
Battery Autonomy - Up to 5 days

Material

Cover - Automotive Grade PMMA
Body - ED Coated Die Cast Aluminum
Battery Compartment - Stainless Steel
Base Frame - Aluminum
Solar Panel Type - Monocrystalline
